Low Price 300m Water Depth Measuring Instrument With Stainless Steel Ruler

Name: Low Price 300m Water Depth Measuring Instrument With Stainless Steel Ruler
Brand: GOLD
Price: 1 USD

Wholesale Low Price 300m Water Depth Measuring Instrument With Stainless Steel Ruler from china suppliers

Brand Name : GOLD

Model Number : GD-S

Certification : ISO9001 CCC CE

Place of Origin : chongqing,China

MOQ : 1 set

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1 set per 5 day

Delivery Time : 5-8 work days

Packaging Details : Carton

Material : ABS

Product Name : GD-S Ruler Water Meter

Measure Range : 30-500m

Accuracy : 0.5mm

Response time : ≤1ms

Customized support : OEM, ODM, OBM

Coated : PE/PU

Power Supply : 9v lithium battery

Signal : LED/buzzer

color : Black/yellow/blue/orange

Contact Now

New factory low price 300m water depth measuring instrument with stainless steel ruler

Product Description

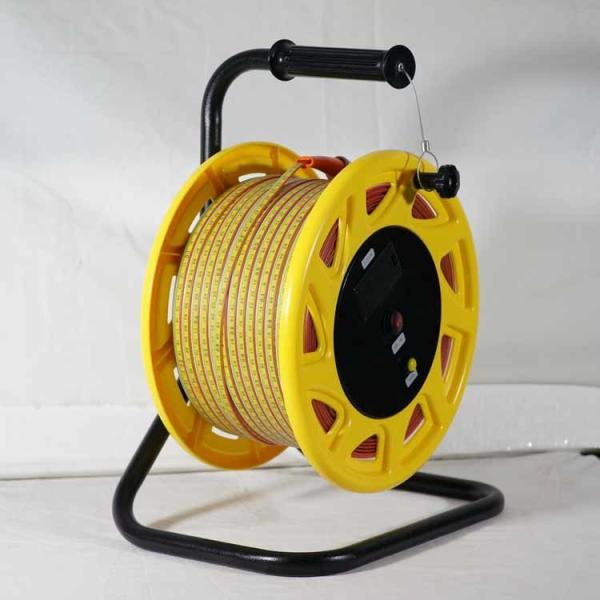

Low Price 300m Water Depth Measuring Instrument With Stainless Steel Ruler

water level meter is an instrument used to measure water level height. It is widely used in various water conservancy projects and urban planning, including reservoirs, rivers, lakes, oceans, wells, water pipes, etc. By measuring the water level height, it helps people understand the hydrological situation, monitor floods and droughts, control water level changes, and adjust and control water levels in a timely manner.

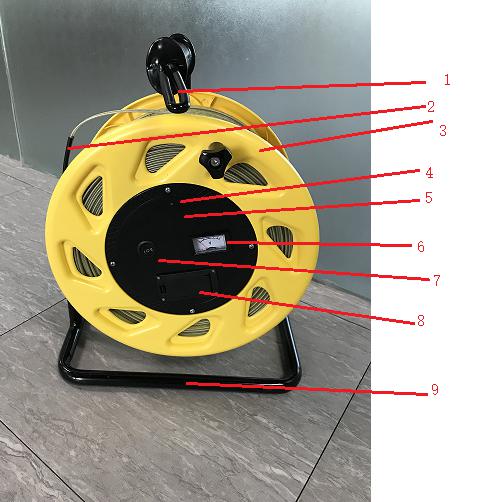

Product Structure

Low Price 300m Water Depth Measuring Instrument With Stainless Steel Ruler

1. This is to fix the reel panel.
2. Probe, probe diameter is 14mm, when it detect water, the led light on and buzzer buzzing.
3. Reel's material: plastic.
4. Led light,when probe contact water,light on.
5. Buzzer,when probe contact water,buzzing.
6. Power voltage,this show the battery power.
7. Button.
8. Battery case,it is a 9V battery inside.
9. Support,materi is metal.

Technical Parameters

Specification	WLM-30	WLM-50	WLM-100	WLM-150	WLM-200	WLM-300	WLM-400	WLM-500
Depth of the measurement(m)	0~30	0~50	0~100	0~150	0~200	0~300	0~400	0~500
Minimum indication(mm)	1.0
Repeat indication(mm)	±2.0
Weight(kg)	4.5	5.5	6.5	7.5	8.5	10	12	15
Power supply(v)	DC=9

Low Price 300m Water Depth Measuring Instrument With Stainless Steel Ruler

Working principle

The measurement of the water level by the following two parts: 1. Underground material, it is composed by water level pipe and bottom cover (not include in the system,it is need purchased separately) Ground receiver-ruler water level meter, it is composed by detect head, ruler cable, receiver system and cable reel. Detect head: made by steel, inside is a water resistance contact point. When the contact point contact water, the receiver system will open, and when the contact point leave the water,the receiver system will close. Ruler cable: it made by ruler and cable, and use plastic technology keep them together, and avoid the steel corrosion and simple the operation,make the read more convenient and accurate. Receiver system:it is composed by sounder,indicate light. 2 the green button in the panel is test button, when push this button, light on and buzzing, that indicate the circuit is in good condition. Or else, the circuit have problem or the battery has no power.

Use method

In measuring, make the cable reel rotate and push the power button,put the detect head in the water pipe, put the ruler cable in hand and make it drop slowly. When the detect head contact point contact water, the receiver system buzzer will sound. Then you can read the data of the ruler cable and can know the water level(If the surrounding voice is loudly, maybe you can hear buzzer,so you can observe the indicate light and voltage meter).

our services

1.Professional technical support pre-sale, sale and after-sale.

2.Your problems can get feedback in 8 hours and be solved in 24 hours.

3.Machine can be customized as per your requirement.

4.One year quality warranty.

5.Training: operation manual and DVD operation video, overseas installation is also available.

6.Spare parts are available in our factory at cost price for former customers.

Low Price 300m Water Depth Measuring Instrument With Stainless Steel Ruler
