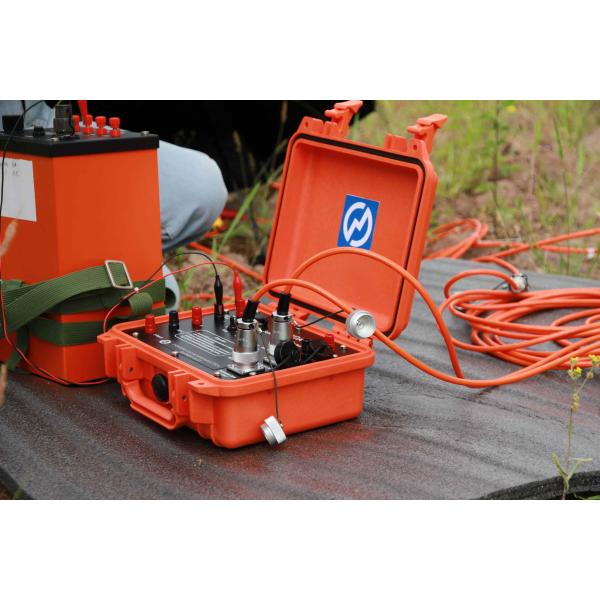

Groundwater Survey Equipment Resistivity Imaging Technology Geophysical Resistivity Meter

Name: Groundwater Survey Equipment Resistivity Imaging Technology Geophysical Resistivity Meter
Brand: GOLD
Price: 1 USD

Wholesale Groundwater Survey Equipment Resistivity Imaging Technology Geophysical Resistivity Meter from china suppliers

Brand Name : GOLD

Model Number : WGMD-9

Certification : CE, ISO

Place of Origin : chongqing,China

MOQ : 1 set

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1 set per 5 days

Delivery Time : 5-8 work days

Packaging Details : wooden case

Product name : super electric multi-electrode Survey system

Brand name : GOLD

Place of origin : Chongqing, China

Host machine : WDA-1

Cable : 5m space cable, 10m space cable(optional)

Maximum power : 7200W

Maximum supply voltage : ±1200V

Working temperature : -10℃~+50℃, 95%RH

Contact Now

Groundwater Survey Equipment Resistivity Imaging Technology

The Geophysical Resistivity Meter is a state-of-the-art instrument designed for comprehensive subsurface exploration. It integrates advanced resistivity and IP imaging technologies, making it indispensable for a wide range of applications.

Key Features:

Multi-functionality: Capable of 2D and 3D resistivity imaging, IP measurements, and groundwater detection.
High precision: Measures voltages as low as 0.1mV and currents as small as 0.1mA with ±1% accuracy.
Wireless control: Operates via Bluetooth-enabled Pocket PC, allowing remote control within a 10-meter range.
Robust design: Encased in an imported airproof box, it is waterproof, dustproof, and built for durability.

Applications:

Energy exploration: Ideal for locating oil, gas, and geothermal resources.
Civil engineering: Essential for surveying dam sites, bridges, and railways.
Mineral exploration: Effective in detecting both metallic and non-metallic minerals.
Hydrogeology: Used for groundwater detection and flood risk assessment.

Advantages:

Portability: Combines transmitter and receiver in a compact, lightweight unit.
Wide measurement range: Supports voltage, current, apparent resistivity, SP, and IP parameters.
Anti-interference technology: Utilizes multi-stage filtering and signal enhancement for high accuracy.
User-friendly interface: Pocket PC control simplifies data sampling, storage, and analysis.

Groundwater Survey Equipment Resistivity Imaging Technology Geophysical Resistivity Meter

WGMD-9 system parameter:

Function System	System model	Host machine	Converter	DC high voltage power	Cable & Electrode
Centralized 2D multi-electrode Res Survey	WGMD-9	WDA-1	WDZJ-4/ WDZJ-120	External	Centralized cable and electrodes
Distributed 2D/ 3D multi-electrode Res survey	WGMD-9A	WDA-1	N/M	External	Distributed multi-electrode Res survey cable and electrodes
Distributed 2D multi-electrode Res & IP survey	WGMD-9B	WDA-1	N/M	External	Distributed multi-electrode Res & IP survey cable and electrodes
Cable	5m space cable, 10m space cable(optional)

Host machine(WDA-1) parameter:

Receiving part
Voltage channel	±32V(24 bit A/D)
Measurement accuracy	Vp≥5mV, ±0.2% ±1 character, 0.1mV≤Vp<5mV, ±1% ±1 character
Input impedance	>50MΩ
Apparent polarization accuracy	±1%±1character
SP compensation range	±10V
Current channel	6A(24bit A/D)
Measurement accuracy	Ip≥5mA, ±0.2% ±1character, 0.1mA≤Ip≤5mA, ±1% ±1 character
As for 50Hz industrial interface(common and different mode)depression	Better than 80dB
Transmitter part
Maximum power	7200W
Maximum supply voltage	±1200V
Maximum supply current	±6A
Supply current width	1~60s, duty rate 1:1
Others
Working temperature	-10℃~+50℃, 95%RH
Storage temperature	-20℃~+60℃
Power supply	Built-in 7.4V4Ah(or outside 12V), lasting for 20h
Main unit port	A, B, M, N, DC high voltage, outside battery, 2 cable port, RS-232, blue tooth
Weight	≤4kg
Dimension	270mm246mm123mm
Pocket PC
Windows mobile 5.0 system, 624MHz, 640*480 true color, 128MB Flash ROM /64MB SDRAM, 512MB CF card, Blue-tooth, infrared, serial port, 2 rechargeable batteries, with Word, Excel.
