Portable Water Level Meter 30-500M Well Deep Meter Underground Water Level Gauge

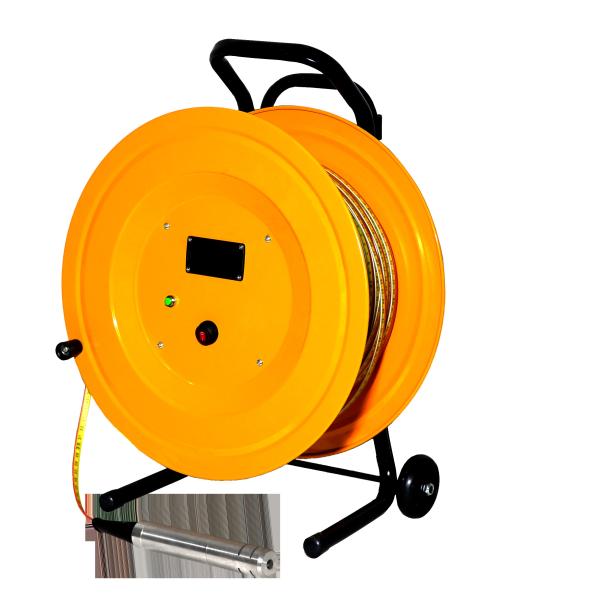

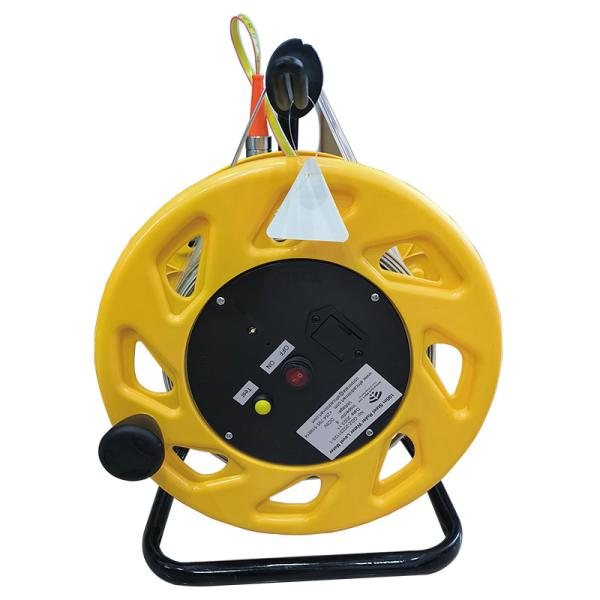

The GD-S Portable Borehole Water Level Meter Sensor includes a shrouded stainless steel probe, adjustable volume and buzzer sensitivity controls, and a sturdy winding reel with a brake and carrying handle. The meter has moisture-resistant circuitry, and the common 9V battery is conveniently situated in the front for easy access. With these remarkable characteristics, the Water Level Meter is an essential tool for water testing and monitoring applications. Rest confident that this dependable equipment constantly produces precise results, making it a solid choice.
Main Feature
Accurate:
· Markings each 1/100 ft. or millimeter
· Traceable to national standards
· Sensitivity adjustable to conductivity
· Probes avoid false readings in cascading water
Reliable:
· Permanent laser markings
· Non-stretch PVDF flat tape with stainless steel conductors
Long Life:
· Rugged, corrosion proof components
· Strong, flexible tapes
· Easy to splice and repair
Flexible:
· PVDF replacement tapes are interchangeable with other meters
· It can integrate with existing or future equipment
Specifications
RULER CABLE
The ruler cable is made of a durable steel ruler and a sturdy cable, joined together using a plastic fixation process that prevents corrosion. The simple operation of our device makes reading measurements convenient and accurate.
- Tape with milimeter precision
- Copper wire conductor wrapped together
- Strong and prevent breakage
- Carton steel cable
STAINLESS STEEL
This water level meter is made of stainless steel and has a water-resistant metal probe, has a quick reaction time, ensuring effective and accurate readings. When the probe makes contact with water, the receiving system is started, and it turns off automatically when the contact points are removed from the water.
- Heat shrinkable sleeve
- Quick response
- Stainless steel shell materil
- Water resistant metal probe inside
Technical Specification
| Portable Water Level Meter 30-500M Well Deep Meter Underground Water Level Gauge |
| Item | Specification |
| Shell material | Metallica |
| Shell color | Blue, Yellow, Red |
| Depth range | 30m, 50m, 100m, 200m, 300m, 400m, 500m |
| Accuracy | 0.5mm |
| Response time | Less than 1ms |
| Battery power | 9V Lithium Battery |
| Working temperature | from -20 to +60 |
| Measurement signal | LED, Buzzer and electricity meter |
| Standard | IEC60332-1 |
