Multi-electrode 3D resistivity imaging meter High-Density electrical resistivity tomography equipment geological resistivity survey detector
The WGMD-9 super high-density electric system represents the latest in electronic innovation, incorporating cutting-edge technologies like Chinese Pocket PC, Bluetooth, 24-bit A/D, and high-power control. This new generation system boasts reduced volume and weight, superior technical indicators, and functionality surpassing both domestic and international counterparts. Its capabilities excel in diverse and challenging field conditions.
Main Feature
- Advanced electronic technology: Utilizes the latest components like the Chinese Pocket PC, Bluetooth, 24-bit A/D conversion, and high-power control for improved reliability, efficiency, and accuracy.
- High-density design: Significantly reduces volume and weight compared to traditional instruments, enhancing portability and ease of use in the field.
- Leading technical indicators: Surpasses current domestic and international instruments in terms of sensitivity, accuracy, and resolution, enabling precise measurements and data analysis.
- Enhanced functionality: Offers advanced features such as real-time data visualization, customizable measurement parameters, automated data processing, and efficient data storage and retrieval.
- Adaptability to complex environments: Designed to withstand and excel in challenging field conditions, ensuring reliable operation and accurate results in demanding geological and environmental settings.
Application

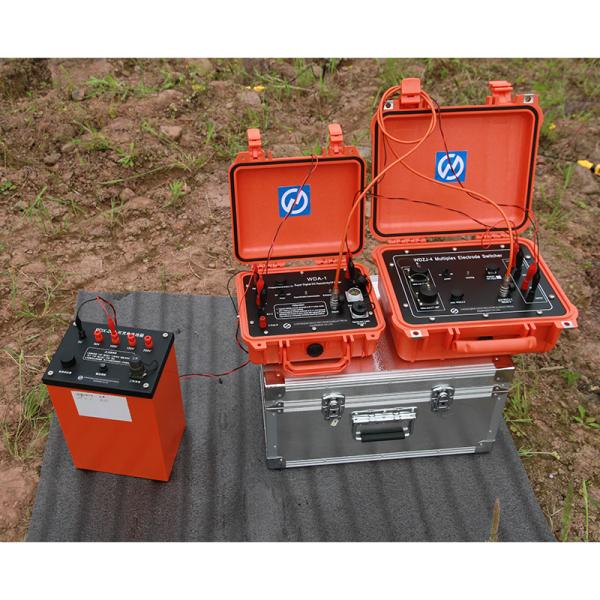

Configuration
WGMD-9 system configuration table:
| Function System System | System model | Host machine | Converter | DC high voltage power | Cable & Electrode |
| Centralized 2D multi-electrode Res Survey | WGMD-9 | WDA-1 | WDZJ-4/ WDZJ-120 | External | Centralized cable and electrodes |
| Distributed 2D/ 3D multi-electrode Res survey | WGMD-9A | WDA-1 | N/M | External | Distributed multi-electrode Res survey cable and electrodes |
| Distributed 2D multi-electrode Res & IP survey | WGMD-9B | WDA-1 | N/M | External | Distributed multi-electrode Res & IP survey cable and electrodes |
| Cable | 5m space cable, 10m space cable(optional)
|
Technical Specification
WDZJ-4 Electrode converter:
| Max electrode connected | 60/unit |
| Insulation impedance | ≥500MΩ |
| Max working voltage | 500VDC |
| Max working current | 2.5ADC |
| Power supply | Internal 7.4V 4AH rechargeable lithium battery, lasts for continuously 25 hours |
| Working temperature | -10°C~+50°C |
| Dimension | 340mm×295mm×152mm |
| Weight | 5.8kg |
Host machine(WDA-1) parameter:
| Receiving part |
| Voltage channel | ±32V(24 bit A/D) |
| Measurement accuracy | Vp≥5mV, ±0.2% ±1 character, 0.1mV≤Vp<5mV, ±1% ±1 character |
| Input impedance | >50MΩ |
| Apparent polarization accuracy | ±1%±1character |
| SP compensation range | ±10V |
| Current channel | 6A(24bit A/D) |
| Measurement accuracy | Ip≥5mA, ±0.2% ±1character, 0.1mA≤Ip≤5mA, ±1% ±1 character |
| As for 50Hz industrial interface(common and different mode)depression | Better than 80dB |
| Transmitter part |
| Maximum power | 7200W |
| Maximum supply voltage | ±1200V |
| Maximum supply current | ±6A |
| Supply current width | 1~60s, duty rate 1:1 |
| Others |
| Working temperature | -10℃~+50℃, 95%RH |
| Storage temperature | -20℃~+60℃ |
| Power supply | Built-in 7.4V4Ah(or outside 12V), lasting for 20h |
| Main unit port | A, B, M, N, DC high voltage, outside battery, 2 cable port, RS-232, blue tooth |
| Weight | ≤4kg |
| Dimension | 270mm*246mm*123mm |
| Pocket PC |
| Windows mobile 5.0 system, 624MHz, 640*480 true color, 128MB Flash ROM /64MB SDRAM, 512MB CF card, Blue-tooth, infrared, serial port, 2 rechargeable batteries, with Word, Excel. |
